Foundation of Thermoelectric Cooling

Simplified drawing of air-to-air TEC assembly with heat sink and fan

This section introduces the core principles of Peltier modules. It establishes that TECs are not cold generators, but solid-state heat pumps reliant on the efficiency of dual-heatsink architectures.

⚖

The Heat Pump Concept

TECs facilitate a directional transport of phonons and charge carriers across Bismuth Telluride (Bi₂Te₃) junctions. The efficiency is governed by the Figure of Merit (ZT):

ZT = (α² σ / k) T

A high ZT requires materials with high electrical conductivity (σ) to minimize Joule heating, and low thermal conductivity (k) to prevent Fourier heat backflow.

📊

Governing Equations

The net cooling capacity (Q_c) absorbed at the cold junction is defined by:

Q_c = α T_c I - 0.5 I² R - K (ΔT)

The heat rejected at the hot junction (Q_h) includes electrical work:

Q_h = Q_c + P_elec

Fundamental Asymmetry: Q_h ≫ Q_c

Hot-Side Thermal Rejection

Temperature monitoring system showing thermal spike detection and prevention measures

This section explores the critical nature of the hot-side heatsink. Inadequate heat dissipation here leads to catastrophic failure known as Thermal Runaway. Use the interactive model below to see how thermal resistance impacts system temperatures.

Thermal Runaway Simulator

Adjust the Hot-Side Thermal Resistance (R_th). As resistance increases (simulating a poor heatsink or bad thermal paste), the hot side temperature (T_h) spikes. Because the module has a maximum ΔT, the cold side (T_c) is forced upward, eventually failing to cool.

Heatsink Thermal Resistance (R_th) : 0.5 K/W

Excellent (Liquid Cooled) Poor (Passive/Small Fin)

Thermal Interface Materials (TIMs)

Microscopic surface roughness acts as an insulator. Contact resistance relies on Bond Line Thickness (BLT). High-performance thermal grease (k > 4 W/m·K) and 150-300 psi mounting pressure are vital.

Newton's Law of Cooling

Q_h = h · A_fin · η_fin · (T_hs - T_amb). Forced-air convection or liquid cold plates are mathematically non-negotiable for high-capacity applications.

Transient Dynamics & Load Management

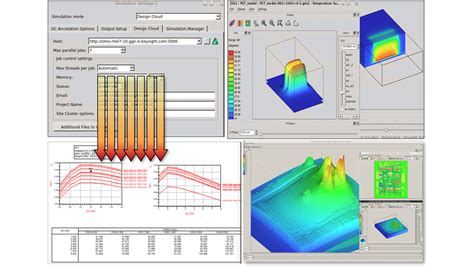

Thermal simulation software interface showing temperature distribution and heat flux

This section focuses on the cold-side heatsink, which acts as a thermal buffer. The simulation below visually solves the transient thermal response equation: m · c_p (dT_c/dt) = Q_load - Q_c + Q_parasitic.

Transient Load Simulator

Simulate a pulsed heat load (like a laser). Observe how thermal mass slows the temperature change, while parasitic loads (like condensation) prevent reaching target temperatures.

Thermal Mass (m · c_p): 50 J/K

Active Heat Load (Q_load): 20 W

Parasitic Load (Condensation): 0 W

If T_c drops below dew point, condensation adds massive latent heat: Q_latent = m_cond · h_fg

Spreading Resistance

When the heat source is smaller than the TEC ceramic, heat must spread laterally. A poorly designed cold sink creates a severe thermal bottleneck.

R_sp = (1 - (A_source/A_tec)) / (4 k_s √(A_source/π))

Electrical & Mechanical Integration

Comparison of thermal paste vs thermal pad for optimal heat transfer between components

System efficiency relies heavily on power quality and mechanical mounting. This section details how PWM ripple and thermal cycling degrade performance.

⚠

Power Supply Ripple & COP

COP approaches optimal levels only with pure DC current. Because Joule heating (I²R) scales with RMS current, while Peltier cooling scales with average current, AC ripple from PWM controllers severely degrades cooling.

ΔCOP_loss ∝ (I_RMS / I_avg)² - 1

Requirement: High-frequency LC filtering to keep current ripple below 5%.

⚙

Thermo-Mechanical Fatigue

During thermal cycling, rigid ceramic substrates expand at different rates due to ΔT, inducing shear stress (τ) on fragile Bismuth Telluride pillars.

τ = G · (α_CTE · ΔT · L) / t

Consequence: Prolonged cycling without proper compressive mounting forces leads to fatigue micro-cracking, increasing internal resistance.
